Description of the DAB NOVA 300 M-A
Brief specifications
- Pump capacity 13,000 l/h
- Delivery head 7.2 m
- Solids up to 10 mm
- Unique: high pump capacity, to process many litres
- More specifications »
Pros and cons
- Small size
- Very high flow rate
- Switches on/off automatically
- Has a reliable float switch
- Space needed for the float
The DAB Nova 300 M-A Submersible Pump is highly suitable for supplying water directly from a reservoir or tank. It allows you to pump water easily from the source, which is handy for the water supply to your greenhouse or vegetable garden. Thanks to the pump's higher capacity, it is more convenient than other – smaller − submersible pumps.
This model is suitable for processing clean and cloudy water, with a maximum passage of solids up to 10 mm. Extremely handy to use in and around the house. Draining flooded basements or rooms/cellars, for example, can be done perfectly with these pumps. In addition, owing to their ease of use, these submersible pumps can also be put to work in acute situations involving flooding, or for draining water from swimming pools, fountains, or reservoirs.
Water level
This pump is fitted with a float switch, which means that it switches on/off automatically based on the water level.
- Switches on automatically at a water level of 28.5 cm
- Switches off automatically at water level of 8.5 cm
- In manual mode (fastening/raising the float), this pump drains water to a level of 5 cm.
If you are looking for a pump that leaves less water/switches on automatically sooner, you can opt for a submersible puddle pump.
DAB
DAB is one of the best-selling brands of water pumps for consumers as well as for professionals. These pumps adhere to a very high standard of quality, with each pump being tested manually by a staff member before it is put on the market. This is the only way DAB can guarantee that you obtain the absolute best. They have a solution regarding almost any situation, whether it involves an industrial application or simply spraying a garden. DAB's professional quality is also reflected in its consumer line. The DAB pumps we replace for people are usually over ten years old.
Float for automatic activation / deactivation
This submersible pump is fitted with a float, which ensures that the pump is switched on and off automatically. Each pump has its own variables relating to the level at which the pump switches on or off. Robust wastewater pumps usually have a high level of activation and deactivation. They will start operating relatively late and stop relatively soon, unlike puddle pumps, which switch on sooner and switch off later. Check the pump's specifications for these variables. There are three types of floats: a floating one, which is attached to a cable; a float arm; and an integrated float. The first type needs more space because it may float in any direction, while the float arm needs less space, as it only moves up and down, and generally has higher operational reliability. Finally, there is the internal float, which is integrated in the pump and therefore needs the least space. We see these internal floats mainly in puddle pumps, because they need to operate in small spaces.
Types of water this product can pump
-
-
-
-
-
-
-
-
- as long as the suction grille does not come into contact with the ground, algae or drab
-
- as long as the suction grille does not come into contact with the ground, algae or drab
-
-
-
Yield table
Similar products of the DAB NOVA 300 M-A
DAB Nova 600 M-A
Regular Price:
33%Discount
Special Price
TIP Maxima 18000
Special Price
TIP Maxima 24000
Special Price
Specifications of the DAB NOVA 300 M-A
General information
-
- DAB NOVA 300 M-A
- 90-degree elbow fitting
- Manual
- DAB
- 2 year warranty
- 8059893220585
Physical specifications
- 1,25"
- Pump body, impeller, head piece, and suction grid made of technopolymer. Motor, rotor shaft, and screws made of stainless steel. Triple sealing in oil bath.
- 4,6 kg
- 18,1 x 29,6 x 26,2 cm
Technical information
- 230 Volt
- 220 Watt
- from 0°C to 35°C for domestic use – a temperature of 45°C for short-term use.
- 5 m
- H05RN-F
Functionalities
- Submersible pump
- Drain a sump pit / tank / rain barrel, Drain flooded land
- 13,000 l/h
- 7,2 m
- 10 mm
-
Types of water this product can pump
-
-
-
-
-
-
-
-
- as long as the suction grille does not come into contact with the ground, algae or drab
-
- as long as the suction grille does not come into contact with the ground, algae or drab
-
-
-
Versions of the DAB NOVA 300 M-A
Is this model too weak or too strong? Choose another model from the same series below.
| Product | Pump capacity | Head rate | Price |
|---|---|---|---|
| DAB NOVA 300 M-A | 13,000 l/h | 7,2 m | £151.00 |
| DAB Nova 600 M-A | 16,200 l/h | 10,2 m | £249.00 |
Accessories of the DAB NOVA 300 M-A
Seven-metre, 1" (25 mm) universal hose
Special Price
Reviews of the DAB NOVA 300 M-A
small but handy
Very satisfied about my purchase. Fast delivery and easy to use. Highly recommended!great pump
Great pump and extremely fast delivery. Very satisfied. They could've included a slightly smaller connection piece, though. My current connection piece has a slightly slimmer hose. Other than that, a great pump and no wet feet anymore!Extremely fast delivery
My old submersible pump - same brand, same type - was starting to fail me after several years. Therefore the slightly lower rating on quality. Nevertheless, I ordered the same pump because it has the same dimensions. Very satisfied about delivery. Hopefully this new pump will serve me longer.great
Had to replace my previous pump with the same model. Not the cheapest option, but works very well thanks to the float switch.Works fine
Pump works great, good advice and speedy delivery.Very pleased
Very prompt delivery!!!Second pump in 12 years
Bought a similar DAB for draining domestic wastewater twelve years ago. After years of reliable operation, the pump completely gave up the ghost. Didn't need to think twice about a replacement.types of water...
I have the DAB Nova 300, which I want to use to drain water from my washing machine. Is the pump suited for this??Water nuisance
Used for protection against flooding after cloudbursts, which is happening quite frequently now. Performs well!Float switch
Meets my demands. I use it for my dormers. Pumps automatically with high water levels. Great that it has a float switch!Perfect
This pump was delivered after I’d been given advice by telephone. Fast delivery, easy to operate, and drains my space quickly.Thank you.
John
Reservoir
I have used this pump for two weeks for the reservoir in my vegetable garden. I drain the reservoir so that I can water my garden. Handy and easy storage when it’s not being used.Frequently asked questions of the DAB NOVA 300 M-A
Frequently asked questions
- How does a float work and what can I do with it?
- At what water level does the pump switch on/off automatically when the float is used?
- In what situations can I use this pump?
- What is the difference between the Maxima 18000, the DAB NOVA 300 M-A, and the DAB FEKA 600 M-A?
- Can this pump be set up in small spaces?
- Is the pump supplied ready for use?
- What items does this kit include?
How does a float work and what can I do with it?
A float ensures that your pump switches on and off automatically at a certain water level.
This is very practical if you want to use the pump in frequently flooded spaces, because with a float the pump does not need to be switched on and off each time the space is flooded.
If you want to use the pump manually, the float should be raised or secured with a piece of rope or tape.
At what water level does the pump switch on/off automatically when the float is used?
This submersible pump switches on automatically at a water level of 285 mm and off at a water level of 85 mm.
To ensure that the entire space does not maintain a water level of 85 mm after the pump automatically switches off, the device is often placed in a sump pit.
This ensures that the pump is situated lower in the space, so that the device continues pumping until a water level of 85 mm has been reached in the sump pit.
In this way, the rest of the space is pumped practically dry, with only a very small amount of water left in the pit.

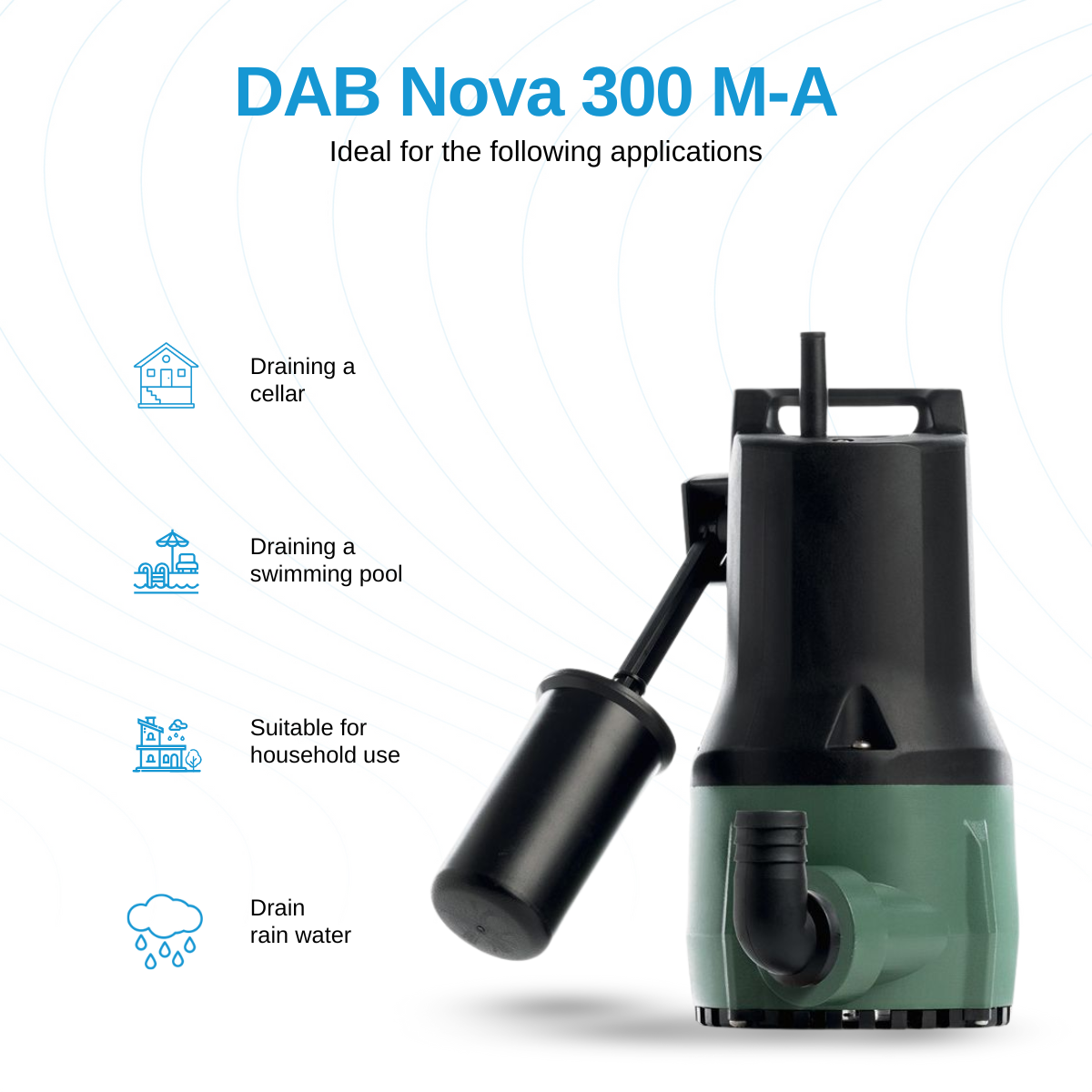

In what situations can I use this pump?
This pump is suitable in the following situations:
- for draining a cellar and/or crawl space
- in a permanent setup, for example, to automatically drain a cellar/crawl space once the water level has been reached;
- for draining a basin
- for draining a swimming pool
What is the difference between the Maxima 18000, the DAB NOVA 300 M-A, and the DAB FEKA 600 M-A?
- The Maxima 18000 is a starter model for pumping dirty water that can be used in almost any situation involving wastewater. This pump is also available with a higher pump capacity: namely, the Maxima 24000, which can process 24,000 litres per hour.
- The DAB NOVA 300 M-A is a dirty water pump suitable for processing water that contains slightly smaller solids (up to 10 mm). As a result, this pump can be particularly useful for flooded cellars/crawl spaces that contain just a little more sand or gravel.
- Of all four models, the DAB FEKA 600 M-A is the most advanced and robust dirty water/wastewater pump. Owing to its robustness and internal technology, this submersible pump can be used, for example, as a faecal pump in a manure pit or sewer system.
Can this pump be set up in small spaces?
This pump requires a space with a minimum diameter of 19 centimetres. However, if you want the pump to operate automatically, the float arm needs to be able to move freely.
In that case, the pump would require a space measuring 30 centimetres.
Is the pump supplied ready for use?
Yes, this pump is supplied with every component needed for immediate use.
What items does this kit include?
- DAB NOVA 300 M-A
- Cable connection (5m)
- Manual
Reply from Waterpump.co.uk:
Dear toulousemarie, thank you for your question. The DAB Nova 300 M-A is definitely suited for draining water from a washing machine!
