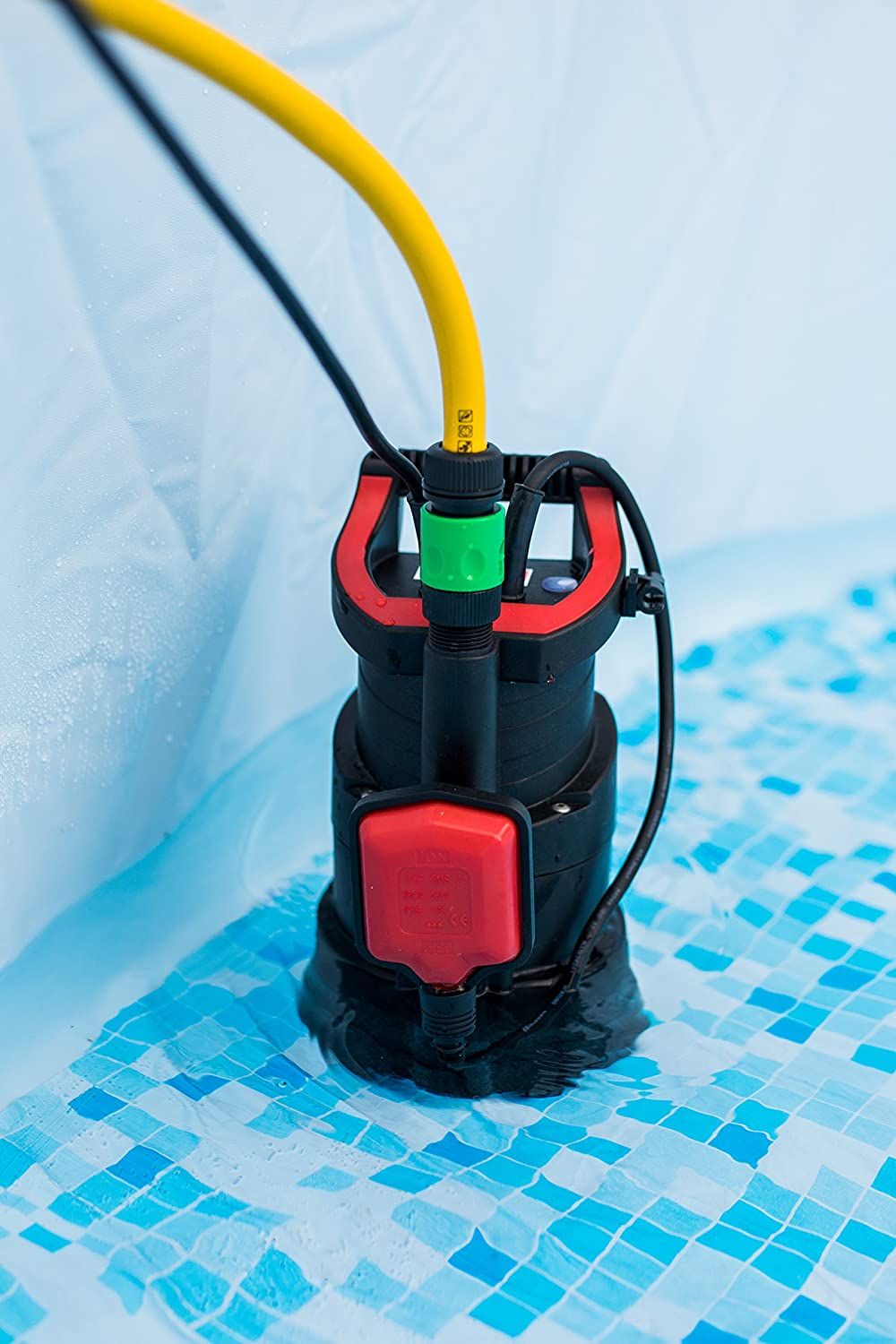

T.I.P. DrainPress 3200/24

loading
tick
Delivery in 1-2 working days
tick
2-year warranty
tick
Customers rate us with 4.5/5
Quantity
Quantity

Tip by Stephen

Tip by Stephen

Product information

Specifications overview

Specifications

General information

Physical characteristics

Technical information

Functionalities

Types of water this pump can handle

Flow-rate table
Delivery diameter: ¾"
  • 20 metre(s) Pump capacity start 600 liters per hour
  • 15 metre(s) Pump capacity start 1,560 liters per hour
  • 10 metre(s) Pump capacity start 1,900 liters per hour
  • 9 metre(s) Pump capacity start 2,150 liters per hour
  • 8 metre(s) Pump capacity start 2,300 liters per hour
  • 7 metre(s) Pump capacity start 2,425 liters per hour
  • 6 metre(s) Pump capacity start 2,550 liters per hour
  • 5 metre(s) Pump capacity start 2,700 liters per hour
  • 4 metre(s) Pump capacity start 2,800 liters per hour
  • 3 metre(s) Pump capacity start 2,900 liters per hour
  • 2 metre(s) Pump capacity start 3,000 liters per hour
  • 1 metre(s) Pump capacity start 3,100 liters per hour
  • 0 metre(s) Pump capacity start 3,200 liters per hour
  • Pomp type

Float for automatic activation / deactivation

This submersible pump is fitted with a float, which ensures that the pump is switched on and off automatically. Each pump has its own variables relating to the level at which the pump switches on or off. Robust wastewater pumps usually have a high level of activation and deactivation. They will start operating relatively late and stop relatively soon, unlike puddle pumps, which switch on sooner and switch off later. Check the pump's specifications for these variables. There are three types of floats: a floating one, which is attached to a cable; a float arm; and an integrated float. The first type needs more space because it may float in any direction, while the float arm needs less space, as it only moves up and down, and generally has higher operational reliability. Finally, there is the internal float, which is integrated in the pump and therefore needs the least space. We see these internal floats mainly in puddle pumps, because they need to operate in small spaces.

T.I.P.

TIP is a German manufacturer, specialising in water pumps for consumers. They have a very interesting range of mainly Inox or stainless steel pumps, fully tailored to the consumer market. Their products range from high-capacity submersible pumps at highly competitive prices to good stainless steel borehole pumps for situations in which water needs to be pumped up from a level deeper than eight metres. Furthermore, TIP is very good at accommodating the consumer. For example, some pumps come with a kit designed to start up immediately, while others are fitted with handy features, such as a top outlet or a baseplate.

Customer reviews

Downloads

T.I.P. DrainPress 3200/24 T.I.P. DrainPress 3200/24
109.95 79.00
