Description of the TIP AJ4 Plus 5500
Brief specifications
- Pump capacity: 5,500 l/h
- Delivery head 40 m / Pressure 4.0 bar
- Suitable for wells with a 4" / 10 cm diameter
- Suitable for garden irrigation, for example
- More specifications »
Pros and cons
- Good price-quality ratio
- Practical borehole pump for around the house
- Ideal for garden irrigation
- No dry-running protection or automatic switch-on/off mode; option in combination with an Electric Control System
- Protect the pump adequately against dirt

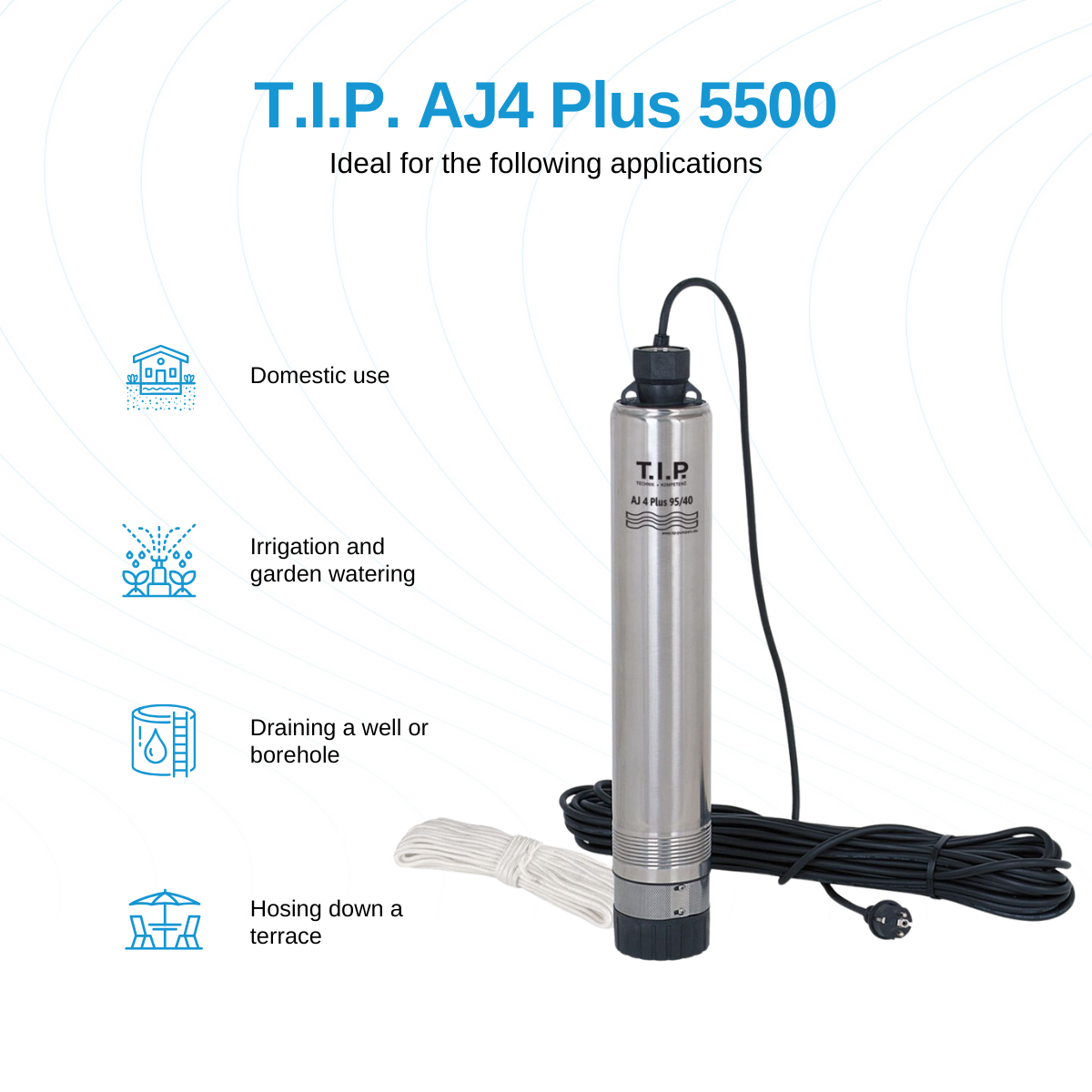

Suitable for generating high water pressure (4 bar) and draining water at great depths. The borehole pump can be installed in a well or borehole, and is fitted with a built-in non-return valve. This is a starter model, designed for domestic use: spraying gardens and lawns, cleaning patios and walkways, supplying water, and supplying irrigation systems.
Summary
- Provides sufficient pressure and capacity for about three sprinklers
- Quality pump of German make
- The hose that can be used for this device is 1.25" in diameter
- The pump's maximum submersion depth is 20 metres (the depth to which it may be immersed in the water)
- A maximum delivery head of 40 metres (4 bar)
Contents of the kit
- AJ4 Plus 5500 Borehole Pump
- Lowering cable
- Manual
TIP
TIP is a German manufacturer, specialising in water pumps for consumers. They have a very interesting range of mainly Inox or stainless steel pumps, fully tailored to the consumer market. Their products range from high-capacity submersible pumps at highly competitive prices to good stainless steel borehole pumps for situations in which water needs to be pumped up from a level deeper than eight metres. Furthermore, TIP is very good at accommodating the consumer. For example, some pumps come with a kit designed to start up immediately, while others are fitted with handy features, such as a top outlet or a baseplate.
Stainless steel / Inox
In some situations, stainless steel, which is also called Inox steel, can be very handy, and is prescribed in particular with regard to drinking water. Drinking water must remain pure and may not contain corrosive elements, which is the reason that stainless steel is used. Furthermore, a stainless steel pump is also resistant to lime, which tends to stick to surfaces, but is not able to do so with smooth, stainless steel surfaces. Cast iron is usually the counterpart of stainless steel, but these pumps are prone to corroding and are therefore used mainly for irrigation. A final advantage of stainless steel is that it is lighter than cast iron and is therefore easier to move.
Types of water this product can pump
-
-
- Please note: Only when there is little/no sand/grit in the water
-
- Please note: Only when there is little/no sand/grit in the water
-
-
-
-
-
-
-
-
-
Yield table
1,25"
3
-
- 40 metres
-
- 35 metres
- 2.000 l/h
-
- 30 metres
- 2.600 l/h
-
- 25 metres
- 3.200 l/h
-
- 20 metres
- 3.900 l/h
-
- 15 metres
- 4.500 l/h
-
- 10 metres
- 4.950 l/h
-
- 5 metres
- 5.250 l/h
-
- 0 metres
- 5.500 l/h
Similar products of the TIP AJ4 Plus 5500
DAB S4 4/9 M KIT
Regular Price:
15%Discount
Special Price
TIP AJ4 Plus 6000
Special Price
Specifications of the TIP AJ4 Plus 5500
General information
-
- AJ4 Plus 5500 Borehole Pump
- Lowering cable
- Manual
- TIP
- 2 year warranty
- 4011458301775
Physical specifications
- 1,25"
- Stainless Steel
- 9,5 kg
- 9,5 x 9,5 x 55 cm
Technical information
- 230 Volt
- 900 Watt
- > 87 dB
- 35°C
- 22 metres
- H07RN-F
Functionalities
- Borehole pump
- Garden irrigation
- 5,500 l/h
- 40 m / Pressure 4.0 bar
- 20 metres
- Max. 3 pieces
-
-
-
-
Types of water this product can pump
-
-
- Please note: Only when there is little/no sand/grit in the water
-
- Please note: Only when there is little/no sand/grit in the water
-
-
-
-
-
-
-
-
-
Versions of the TIP AJ4 Plus 5500
Is this model too weak or too strong? Choose another model from the same series below.
| Product | Pump capacity | Head rate | Price |
|---|---|---|---|
| TIP AJ4 Plus 5500 | 5,500 l/h | 40 m / Pressure 4.0 bar | £279.00 |
| TIP AJ4 Plus 5500 + BRIO-2000 M | 5,500 l/h | 40 m / Pressure 4.0 bar | £339.00 |
| TIP AJ4 Plus 6000 | 6,000 l/h | 57 m / Pressure 5.7 bar | £429.00 |
| TIP AJ4 Plus 6000 + BRIO-2000 M | 6,000 l/h | 57 m / Pressure 5.7 bar | £479.00 |
Accessories of the TIP AJ4 Plus 5500
Seven-metre, 1" (25 mm) universal hose
Special Price
Electric Control System
Special Price
DAB Active Driver Plus M/M 1.1
Regular Price:
17%Discount
Special Price
DAB Control-D - successor of Presscontrol
Special Price
Reviews of the TIP AJ4 Plus 5500
Good pump, good service
The pump was delivered quickly, which was great. Installing it (tying the rope, connecting the hose, and plugging it in the mains) was a piece of cake. Unfortunately, the pump turned out to be unsuitable for what I had wanted it (which had initially escaped my attention when browsing the website) and it broke down. The warranty form was completed and handled outstandingly by Waterpump.co.uk and the manufacturer. This resulted in me getting a more expensive pump that meets my needs (of course, I paid the price difference).AJ4 Plus Borehole Pump
Having used the pump for several days, it meets my requirements: namely, filling buckets of water from a 19-metre-deep water source. However, two people were needed to install it, and on lowering it I also lost the electricity cable, which had been pulled down. Hoisting the pump with the provided rope didn't work and I needed to grab onto everything to lift it up again.With hindsight, too light
With hindsight, I regret not getting the larger 6,000-litre model, because I can't add another sprinkler. Now everything has to be done in two stages. The pump as such works great, but I really should have gotten the larger one.Very pleased
I am very happy with the way my order was handled. It's a good-quality, attractively priced pump. The order was delivered correctly and on time, and the helpdesk people were also very friendly and helpful. I advise you to continue this excellent service and your company will definitely grow.Frequently asked questions of the TIP AJ4 Plus 5500
Frequently asked questions
- What kind of water can I pump with this model?
- Why a borehole pump and not a submersible pump, garden pump or booster pump?
- In what situations can I use this pump?
- How do I install a borehole pump?
- Can I convert this model into an automatic pump?
- I could not find the pump model that I had in mind, what should I do?
- Is the pump supplied ready to use?
- What items does this kit include?
What kind of water can I pump with this model?
The AJ4 Plus 5500 is only suitable to pump clean water; i.e. water that is free from very large solid particles. However, ensure that the water is free from sand, gravel, or street dirt, and that the water temperature is not lower than 0°C and not higher than 35°C.
Why a borehole pump and not a submersible pump, garden pump or booster pump?
Submersible pumps have an average delivery head of 7 metres, while garden and booster pumps can only draw in water from a maximum depth of 9 metres.
Borehole pumps exceed the limits of the other pumps, and are usually capable of raising water to a height of 50 metres.
Ideal for garden irrigation or for providing water in domestic situations.
In what situations can I use this pump?
This pump is suitable for the following applications:
- Draining a space
- Draining a well or borehole
- Watering, spraying, and irrigating a garden or lawn
- Hosing down a terrace, decking or garden furniture
- Supplying water/rainwater for your washing machine, toilet, sink, or shower in a separate circuit
How do I install a borehole pump?
First, the borehole pump needs to be immersed in the water. It is important that the pump is situated at least 50 cm above the bottom, so that it does not draw in any sand, gravel, or other dirt. Furthermore, a borehole pump may be submerged to a maximum depth of 20 metres.
Can I convert this model into an automatic pump?
Yes, the Electric Control System or the DAB Control-D allows you to convert this borehole pump into an active system.
This means that the pump switches on automatically when water is needed (e.g. on opening a tap) and off when it is no longer needed.
I could not find the pump model that I had in mind, what should I do?
If you are looking for and cannot find a pump that meets your requirements, you are advised to contact us by email or telephone. We usually have a suitable recommendation for any situation.
Is the pump supplied ready to use?
Yes, this pump is supplied with every component needed for immediate use.
However, this pump does not come with a discharge hose, although one can easily be added to your order.
Discharge hoses can be connected to each other if a length of 10 metres is not sufficient.
Check here the accessories for the AJ4 Plus 5500..
What items does this kit include?
- AJ4 Plus 5500 Borehole Pump
- Lowering cable
- Manual
